A steel solar carport is a structure pulling double duty. It's a rugged shelter protecting your vehicle from the elements, and it's a personal power station generating clean electricity. You're essentially taking a passive slab of asphalt and turning it into an active asset. That functional efficiency is why we see them popping up everywhere, from home driveways to commercial lots.

The steel frame provides the muscle you need to handle heavy snow loads and high winds, while the panels overhead work to slash your energy bills. We'll cover the structural designs and foundations available, plus waterproofing and long-term maintenance. It's the practical roadmap you need to get the project done right.

Steel is the standard choice for carports because it gives you the best mix of strength and cost. It allows us to build wide, open structures that don't clog your parking lot with unnecessary columns. This frame does the heavy lifting to support the solar panels while shrugging off high winds and heavy snow loads.

Of course, raw steel has a natural enemy in rust. To keep your investment standing for decades, the industry go-to has long been hot-dip galvanization. This process coats the steel in a zinc bath to create a "sacrificial" shield. Basically, if the surface gets scratched, the zinc corrodes first so the structural steel underneath stays pristine.

But lately, the game is changing with Zinc-Aluminum-Magnesium (ZAM). This alloy is a significant upgrade over plain zinc because it actively heals its own cut edges and stops corrosion exactly where it tries to sneak in. With that kind of self-repairing tech, your carport can easily stand up to the elements for 20 to 25 years while requiring almost no maintenance from you.

1. What Is a Steel Solar Carport?

Think of a steel solar carport as doing double duty. It gives you a sturdy, sheltered spot to protect your vehicle from the elements, but instead of a standard roof, you have high-efficiency panels generating power overhead. It's more than just a steel frame; it is a fully integrated energy system that comes with the necessary wiring and inverters to channel that clean electricity directly to your home or the grid.

2. Common Types of Steel Solar Carports

2.1 Single-Row Cantilever

This design is a favorite for a reason. You place the support columns on just one side—usually along the curb or the back of the parking space—and the roof structure extends, or "cantilevers," out over the vehicle.

We recommend this often because it eliminates those annoying front posts that block car doors. It creates an open, accessible feel that makes parking easy for drivers. It is the ideal solution for single rows situated along the edge of a property.

2.2 Double-Row T-Frame

If you need to cover two rows of parking parked back-to-back, the T-frame is usually your most efficient option. A single line of support columns runs down the center divider between the rows, with the canopy spreading out to both sides to form a "T" shape.

This design is highly effective for large commercial lots because it lets you cover the maximum amount of area with the fewest number of steel columns. Fewer columns often mean lower material and installation costs.

2.3 Y, V & T-V Frames

You can think of these as the architectural cousins of the T-frame. By splitting the support post into a Y or V shape, we can often support a wider canopy span while adding significant visual appeal.

While they function similarly to standard T-frames, you might choose these when the look of the structure matters as much as the power it produces. They offer a modern, premium aesthetic that many corporate campuses prefer.

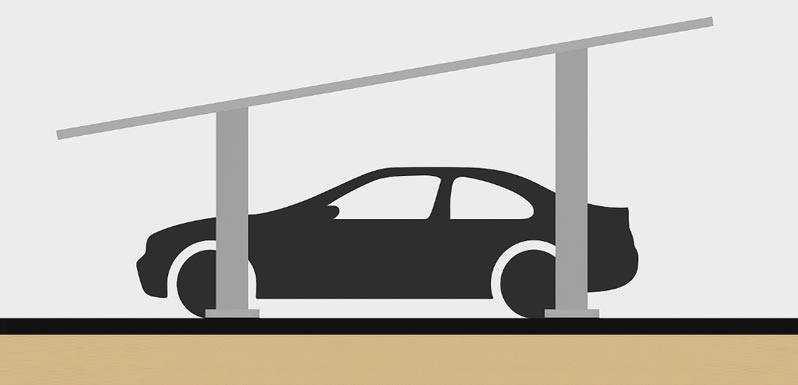

2.4 Multi-Post Frame

Sometimes, the simplest engineering is the best. The Multi-Post Frame works much like a traditional pavilion, supporting the canopy with columns on both sides of the parking row.

Since this design doesn't rely on a cantilever, the weight is distributed evenly across the structure. This balance makes it a straightforward, often more cost-effective option. It is our top recommendation for regions with heavy snow loads where that extra stability is a necessity.
